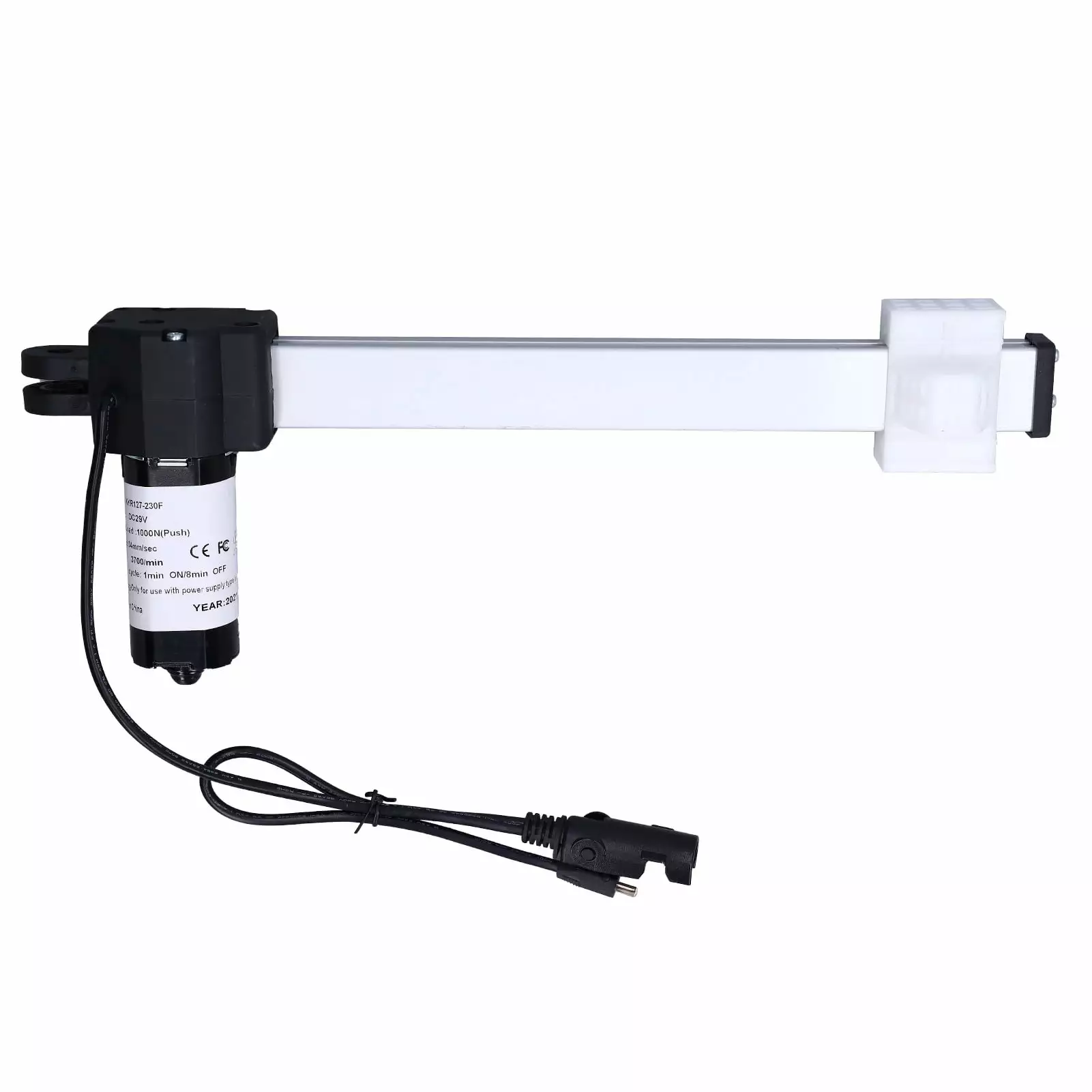

Item Type: Electric Recliner Actuator Motor Material: PVC+Aluminum Alloy+Stainless Steel Gross Weight: Approx. 1754g/61.9oz Voltage: DC29V Current: 2. 2A~2A Power: 58W Load: 1000N (Push) Speed: 34mm/sec Speed: the Speed is 3700/min Minimum Installation Distance: Approx. 127±2mm/5.0±0.08in Maximum Installation Distance: Approx. 357±2mm/14.1±0.08in Stroke: Approx. 230±2mm/9.1±0.08in No Load Speed: 25±10%mm/s Scope of Application: Electric Bed. Electric Sofa. etc.
- 1、GOOD PERFORMANCE: Small electric actuators have a small installation distance. small size. low noise. and space saving.
- 2、ADJUSTABLE SWITCH: The adjustable limit cam type switch of the electric push rod allows the user to adjust the stroke at will.
- 3、LARGE THRUST: Small electric actuators are known for their large thrust and high speed. and have a high IP protection level.
- 4、SHELL DESIGN: Advanced shell design concept. creating high carrying capacity. anti heavy impact. low noise and long life.
- 5、SCOPE OF APPLICATION: It is very suitable for furniture fields that need to be moved up and down. such as electric beds. electric sofas. etc.
Specifications
| Brand | glthekty |
| Manufacturer | glthekty |
| Manufacturer Part Number | rtyuj46050 |
